150,000 FT-LBS
ROTARY TORQUE (MAX)
100 FT
HOLE DEPTH (MAX)
168 IN
HOLE DIAMETER (MAX)

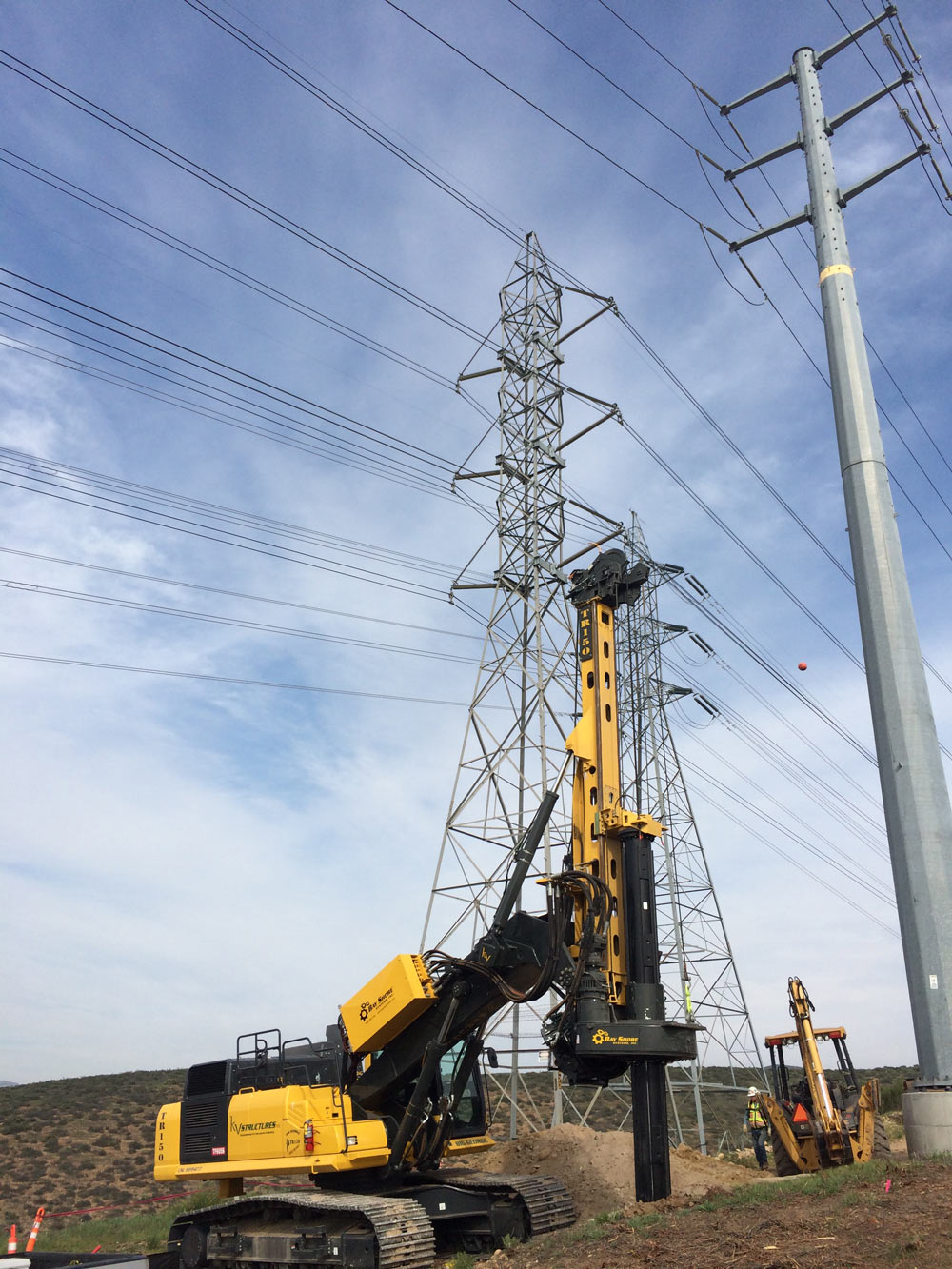

TR150 Excavator LōDril Overview
Add to your fleet’s capability with Bay Shore Systems’ TR150. This rig boasts 150,000 ft-lbs rotary torque and 35,000 lbf of crowd force, making it a foundation drilling powerhouse. Need a rig that can handle complex site requirements? Bay Shore offers a dynamic range of configurations and custom options to meet your drilling needs.
EOH CONTROL JOYSTICK TECHNOLOGY
Bay Shore System’s drill rigs have always remained on the very cutting edge of technology and their new EOH System is no exception. By moving away from the more traditional pilot-controlled hydraulic systems in favor of ones that are controlled electronically, Bay Shore’s rigs are now compatible with the EOH excavators that have come to be seen as the standard as of late. In addition to ensuring that all Bay Shore attachments can be mounted on the excavator of your choice, this new EOH Control System has other benefits as well. One of which is its streamlined control functionality, which operates by use of a digital touch screen, allowing the operator to change settings on the fly. This innovative feature, coupled with the system’s new advanced troubleshooting capabilities, which include near instantaneous feedback, will drastically reduce your downtime, allowing you to resolve issues that in the past would have taken a day in only a few hours.
FEWER PART ISSUES
- Kelly winch — improve dependability with 40,000 lbs (max line pull).
- Shaft diameter — drill shafts ranging from 18 inches (45.7 centimeter) to 14 feet (4.3 meters) in diameter.
- Optimized transport— improve transportability with the option to disconnect the attachment from the carrier.
- Drill depth — choose from an impressive range of available drill depth, from 30 to 100 feet.
- Crowd stroke — drill 168 to 228 inches per pass, depending on the configuration.
